TCAN1051VDQ1 AEC-Q100 CAN FD Transceiver High-Speed Low-Power with Sleep Mode Wake-Up and Robust Protection for SAE J2962-2 Compliant Automotive

TCAN1051VDQ1 AEC-Q100 CAN FD Transceiver High-Speed Low-Power with Sleep Mode Wake-Up andamp; Robust Protection for SAE J2962-2 Compliant Automotive Networks

andnbsp;

Features

andbull; AEC Q100: Qualified for automotive applications

andnbsp; andndash; Temperature grade 1: -40anddeg;C to 125anddeg;C, TA

andnbsp; andndash; HBM classification level: andplusmn;16 kV

andnbsp; andndash; CDM classification level andplusmn;1500 V

andbull; Meets the ISO 11898-2:2016 and ISO 11898-5:2007 physical layer standards

andbull; and#39;Turboand#39; CAN:

andnbsp; andndash; All devices support classic CAN and 2 Mbps CAN FD (flexible data rate) and andquot;Gandquot; options support 5 Mbps

andnbsp; andndash; Short and symmetrical propagation delay times and fast loop times for enhanced timing margin

andnbsp; andndash; Higher data rates in loaded CAN networks

andbull; EMC performance: supports SAE J2962-2 and IEC 62228-3 (up to 500 kbps) without common mode choke

andbull; I/O Voltage range supports 3.3 V and 5 V MCUs

andbull; Ideal passive behavior when unpowered

andnbsp; andndash; Bus and logic terminals are high impedance (no load)

andnbsp; andndash; Power up/down with glitch free operation on bus and RXD output

andbull; Protection features

andnbsp; andndash; IEC ESD protection up to andplusmn;15 kV

andnbsp; andndash; Bus Fault protection: andplusmn;58 V (non-H variants) and andplusmn;70 V (H variants)

andnbsp; andndash; Undervoltage protection on VCC and VIO (V variants only) supply terminals

andnbsp; andndash; Driver dominant time out (TXD DTO) - Data rates down to 10 kbps

andnbsp; andndash; Thermal shutdown protection (TSD)

andbull; Receiver common mode input voltage: andplusmn;30 V

andbull; Typical loop delay: 110 ns

andbull; Junction temperatures from andndash;55anddeg;C to 150anddeg;C

andbull; Available in SOIC(8) package and leadless VSON(8) Package (3.0 mm x 3.0 mm) with improved automated optical inspection (AOI) capability

andnbsp;

Applications

andbull; Automotive and Transportation

andbull; All devices support highly loaded CAN networks

andbull; Heavy machinery ISOBUS applications ISO 11783

andnbsp;

Description

This CAN transceiver family meets the ISO11898-2 (2016) High Speed CAN (Controller Area Network) physical layer standard. All devices are designed for use in CAN FD networks up to 2 Mbps (megabits per second). Devices with part numbers that include the andquot;Gandquot; suffix are designed for data rates up to 5 Mbps, and versions with the andquot;Vandquot; have a secondary power supply input for I/O level shifting the input pin thresholds and RXD output level. This family of devices comes with silent mode which is also commonly referred to as listen-only mode. Additionally, all devices include many protection features to enhance device and network robustness.

andnbsp;

INFORMATION

andnbsp;

Drawing

Our advantage :phones, PDAand#39;s, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active andamp; passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer andamp; Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal andamp; Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc

AEC-Q100 CAN FD transceiver

high-speed low-power CAN transceiver

automotive CAN transceiver with sleep mode

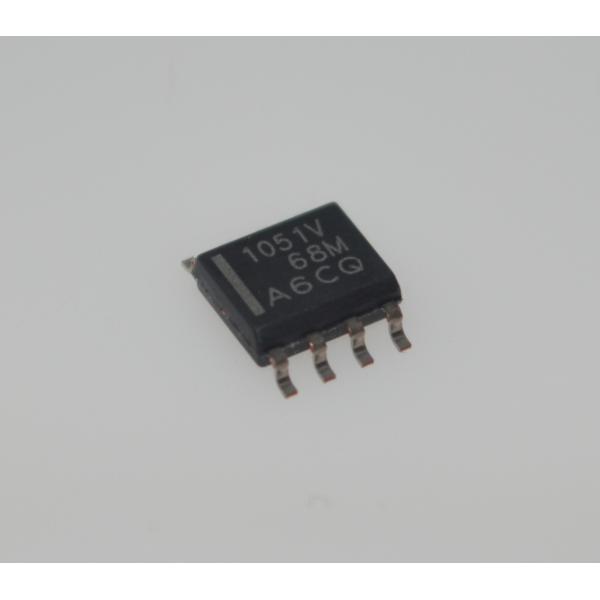

TCAN1051VDQ1 AEC-Q100 CAN FD Transceiver High-Speed Low-Power with Sleep Mode Wake-Up and Robust Protection for SAE J2962-2 Compliant Automotive Images
