LM2596SX-12 12V 3A Step-Down Converter with Wide 4.5V-40V Input 80% Efficiency Adjustable Output, Thermal Protection Low Ripple and Compact TO-263 Package for Reliable Power Regulation
Features
• New product available:– LMR51430 4.5 to 36-V, 3-A, 500-kHz and 1.1 MHz synchronous converter
• For faster time to market:– TLVM13630 3 to 36-V, 3-A, 200-kHz to 2.2-MHz power module
• 3.3-V, 5-V, 12-V, and adjustable output versions
• Adjustable version output voltage range: 1.2-V to 37-V ±4% maximum over line and load conditions
• Available in TO-220 and TO-263 packages
• 3-A output load current
• Input voltage range up to 40 V
• Requires only four external components
• Excellent line and load regulation specifications
• 150-kHz fixed-frequency internal oscillator
• TTL shutdown capability
• Low power standby mode, IQ, typically 80 μA
• High efficiency
• Uses readily available standard inductors
• Thermal shutdown and current-limit protection
• Create a custom design using the LM2596 with the WEBENCH® Power Designer
Applications
• Appliances
• Grid infrastructure
• EPOS
• Home theater
Description
The LM2596 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.
Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation, and a fixed frequency oscillator.
The LM2596 series operates at a switching frequency of 150 kHz, thus allowing smaller sized filter components than what can be required with lower frequency switching regulators. Available in a standard 5-pin TO-220 package with several different lead bend options, and a 5-pin TO-263 surface mount package.
INFORMATION
| Category | | |
| Mfr | | |
| Series | | |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
| Part Status | | |
| Function | | |
| Output Configuration | | |
| Topology | | |
| Output Type | | |
| Number of Outputs | | |
| Voltage - Input (Min) | | |
| Voltage - Input (Max) | | |
| Voltage - Output (Min/Fixed) | | |
| Voltage - Output (Max) | | |
| Current - Output | | |
| Frequency - Switching | | |
| Synchronous Rectifier | | |
| Operating Temperature | | |
| Mounting Type | | |
| Package / Case | | |
| Supplier Device Package | | |
| Base Product Number | |
Drawing
Our advantage :
- High quality products --- our offers are 100% new and original, ROHS
- Competitive price --- good Purchase channels with good price.
- Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
- Adequate inventory --- With the support of our strong Purchasing team,
- Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.
be sure to meet your need for all kinds of components. ^_^
Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,
The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)
Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
|
|

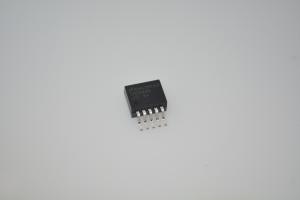

LM2596SX-12 12V 3A Step-Down Converter with Wide 4.5V-40V Input 80% Efficiency Adjustable Output, Thermal Protection Low Ripple and Compact TO-263 Images
|
